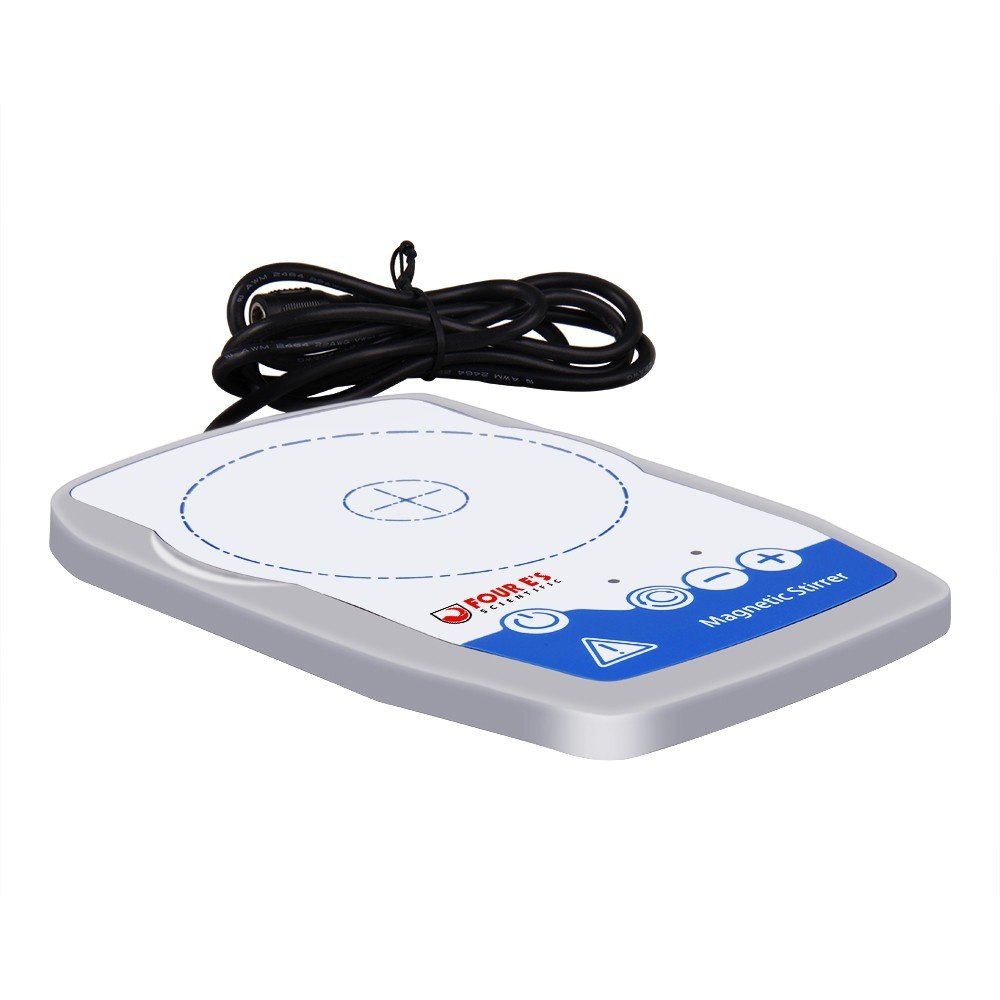

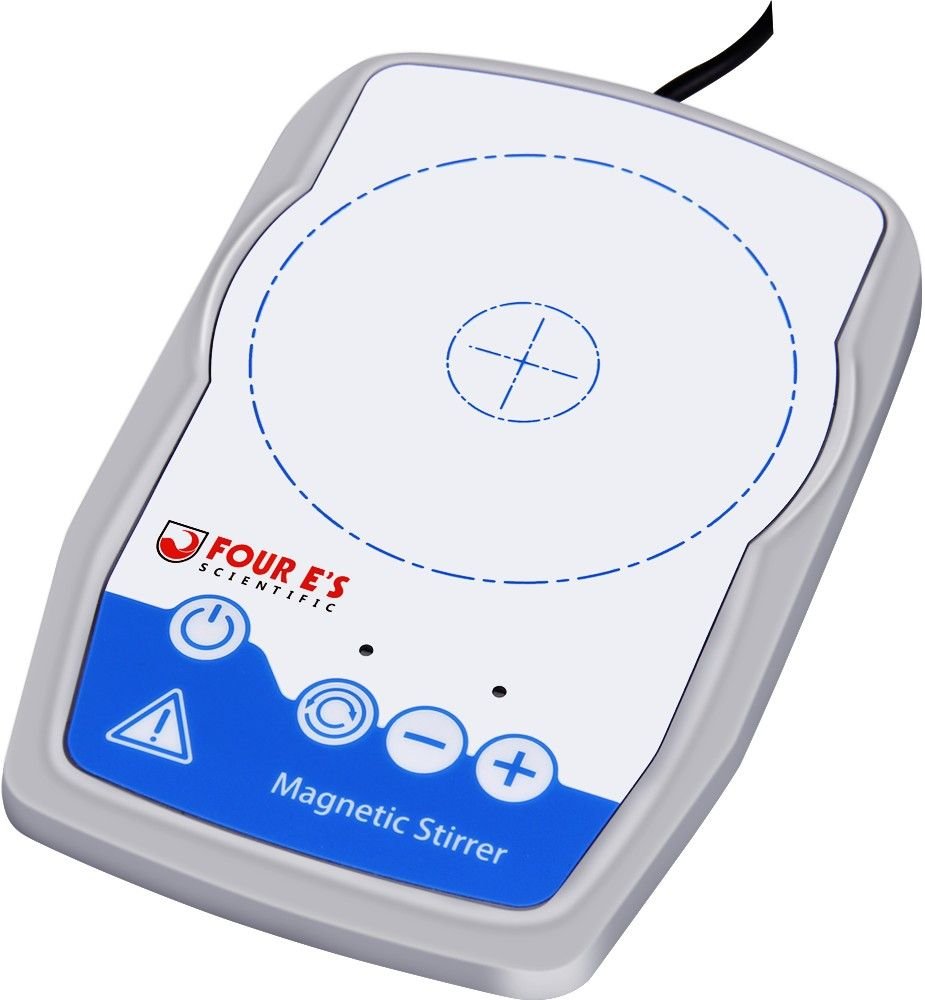

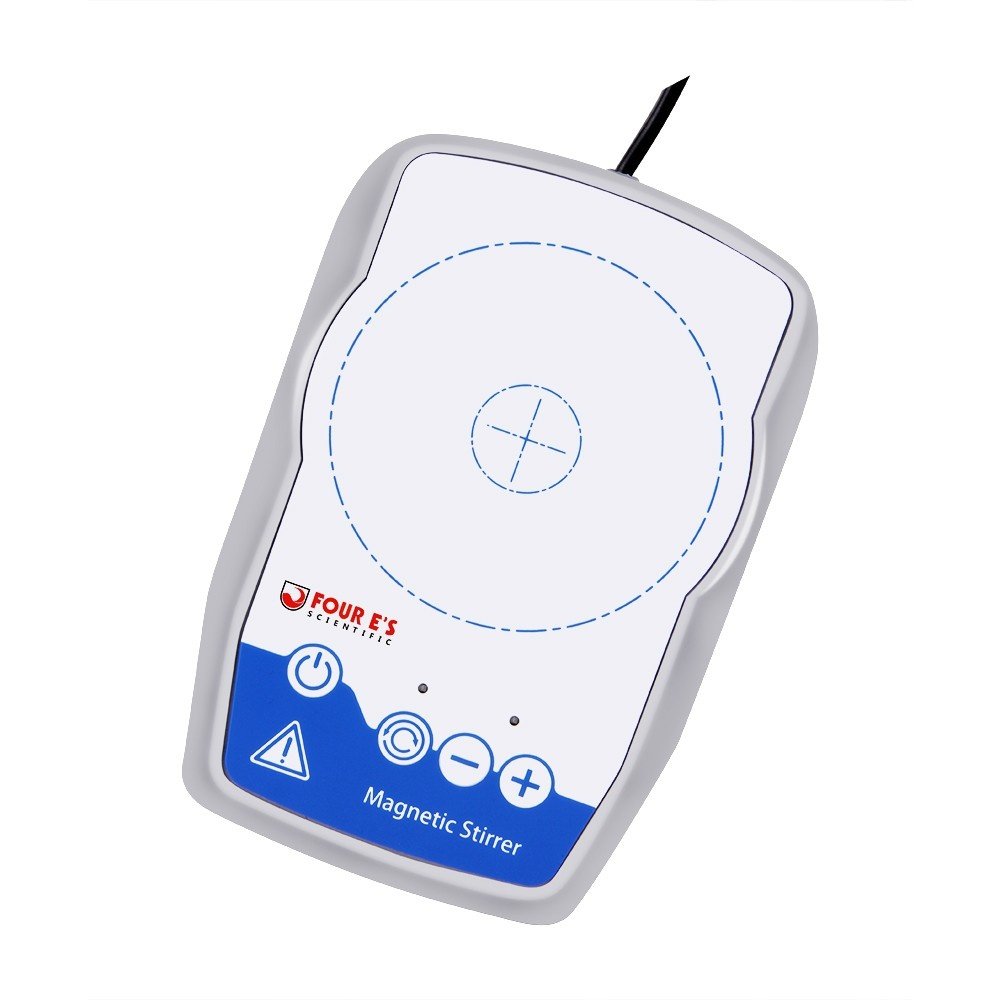

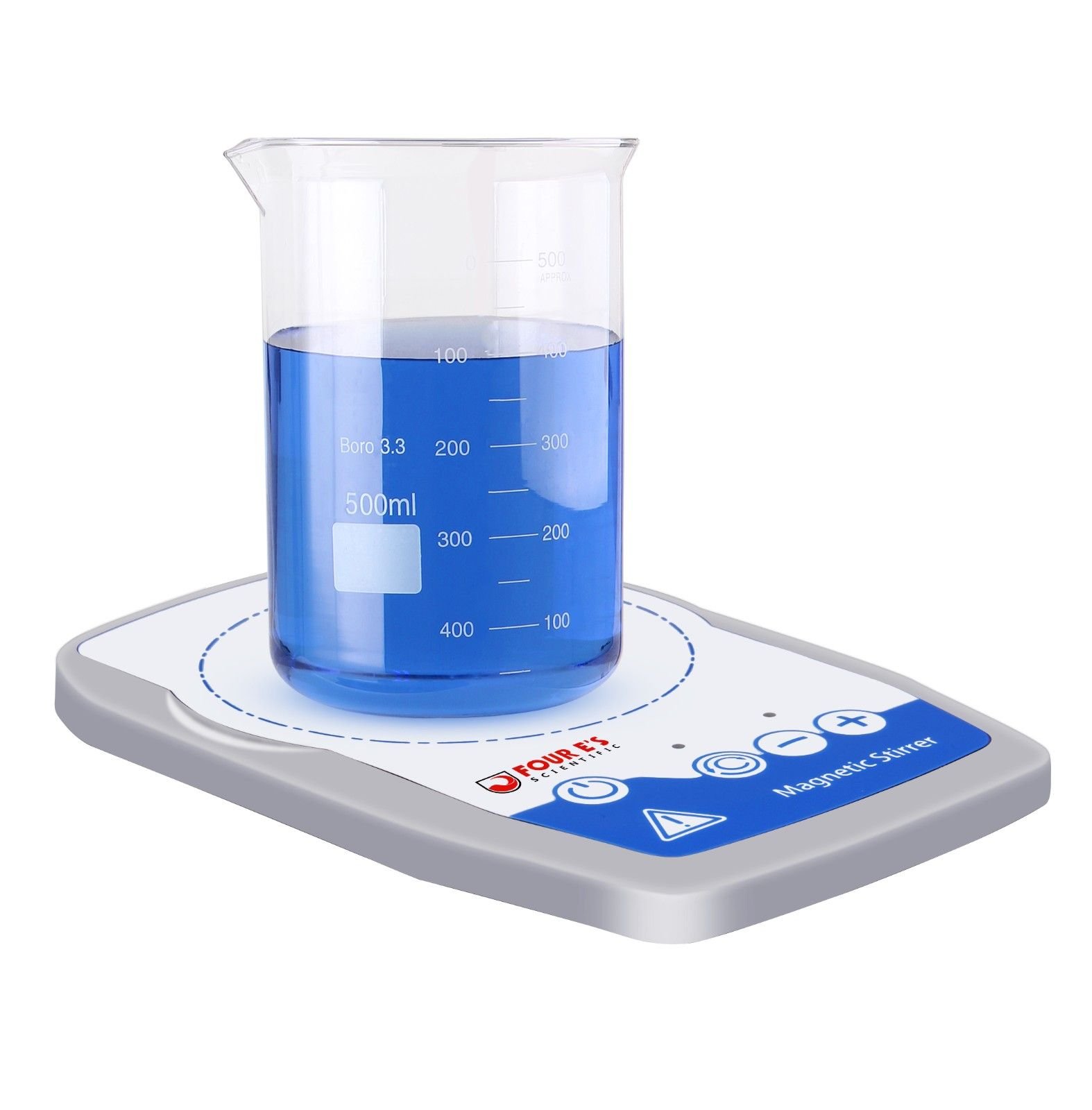

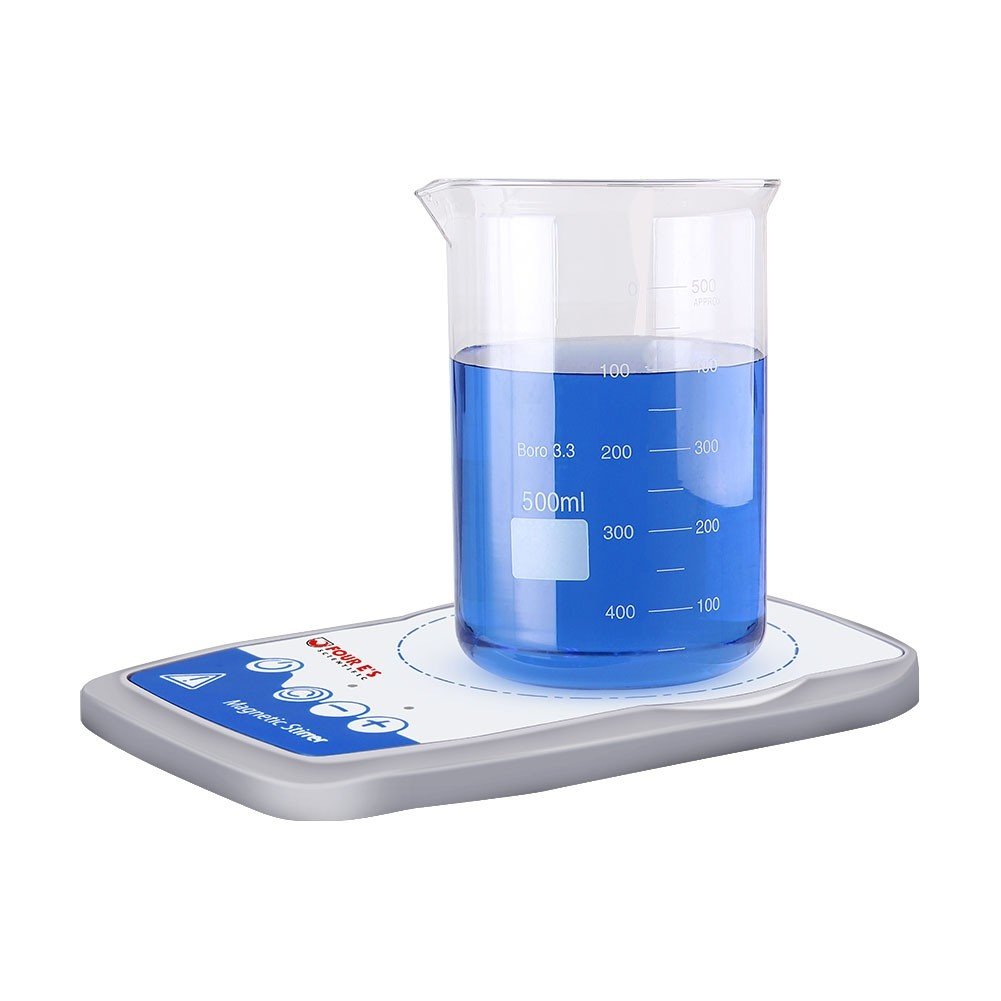

Four E’s Scientific MI0102001 Mini Magnetic Stirrer
The Four E’s Scientific MI0102001 mini magnetic stirrer is a compact stirring platform designed for laboratories with limited bench space or smaller-volume mixing requirements. Despite its small footprint, the MI0102001 offers a wide 15–1500RPM speed range and a chemically resistant, slip-proof design suited to daily use in pharmaceutical, research, and academic laboratories.
The coil-drive stirring mechanism and IP65 protection rating give the MI0102001 durability well beyond what its size suggests, making it a practical choice for satellite benches, teaching labs, or as a secondary stirrer alongside a larger unit.
Key Features
Wide Speed Range in a Compact Footprint
A 15–1500RPM speed range provides fine control from gentle mixing to rapid stirring, despite the unit’s small 115×175×12mm footprint.
Slip-Proof, Stable Stand
The stable, slip-proof base keeps the stirrer securely in place during operation, reducing the risk of movement or spillage on a busy bench.
High IP Protection Class (IP65)
An IP65 protection rating guards against dust ingress and water jets, supporting reliable operation in wet chemistry and general laboratory environments where splashes are common.
Automatic Reverse Rotation
Automatic reverse rotation improves mixing performance for certain sample types, helping achieve more thorough homogenisation than one-directional stirring alone.
Chemically Resistant Construction
The set-up plate and casing are made from chemically resistant materials, allowing the MI0102001 to withstand everyday exposure to laboratory reagents and solvents.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MI0102001 |
| Part Number | MI0102001 |
| Rated voltage | 100–240VAC |
| Rated frequency | 50–60Hz |
| Output voltage | 12VDC |
| Output power | Min. 3W |
| Stirring mechanism | Coil drive |
| Speed range | 15–1500RPM |
| Stirred quantity (max) | 800mL |
| Operating time | 100% |
| Protection class | II |
| Pollution degree | 2 |
| Overvoltage category | II |
| EN 60529 protection class | IP65 |
| Ambient humidity (relative) | 80% |
| Ambient temperature | 5–40°C |
| Transport temperature | -25°C to +70°C |
| Storage temperature | -10°C to +70°C |
| Material | Front membrane sheet polyester |
| Weight | 0.35kg |
| Installed weight (max) | 2kg |
| Set-up surface | Ø100mm |
| Dimensions (W×D×H) | 115×175×12mm |
Applications
The MI0102001 Mini Magnetic Stirrer is suited to a range of laboratory applications including:
- Small-volume reagent mixing — routine mixing tasks up to 800mL
- Teaching and training laboratories — compact, durable stirring for student benches
- Satellite or secondary stirring stations — supplementing a larger stirrer in busy laboratories
- Wet chemistry applications — IP65 rating supports use where splashes are likely
- Field or mobile laboratory setups — small footprint suits space-constrained environments
MI0102001 vs MI0102001D — Which Model is Right for You?
The MI0102001 and the MI0102001D Ultra-Flat Mini Magnetic Stirrer are both compact, low-volume stirrers. The MI0102001D offers a slightly larger 1000mL capacity, an OLED display, and a waterproof tempered glass plate, while the MI0102001 offers a simpler, more economical coil-drive design at 800mL capacity. For higher-volume stirring, see the MI0102008 Digital Magnetic Stirrer (20L) or the MI0102011 Glass Top Magnetic Stirrer (5L).
Availability in Ireland
The Four E’s Scientific MI0102001 Mini Magnetic Stirrer is available from Varen Scientific — Ireland’s authorised distributor for Four E’s Scientific laboratory instruments. We provide local procurement support, clear lead-time communication, and documentation assistance for Irish pharmaceutical, research, and academic laboratories.
For further background on why consistent mixing and reagent homogeneity matter for reproducible laboratory results, refer to research published via the National Center for Biotechnology Information (NCBI).
To request a quote or discuss which magnetic stirrer model is most appropriate for your laboratory application, contact our team directly or use the Request a Quote button above.
