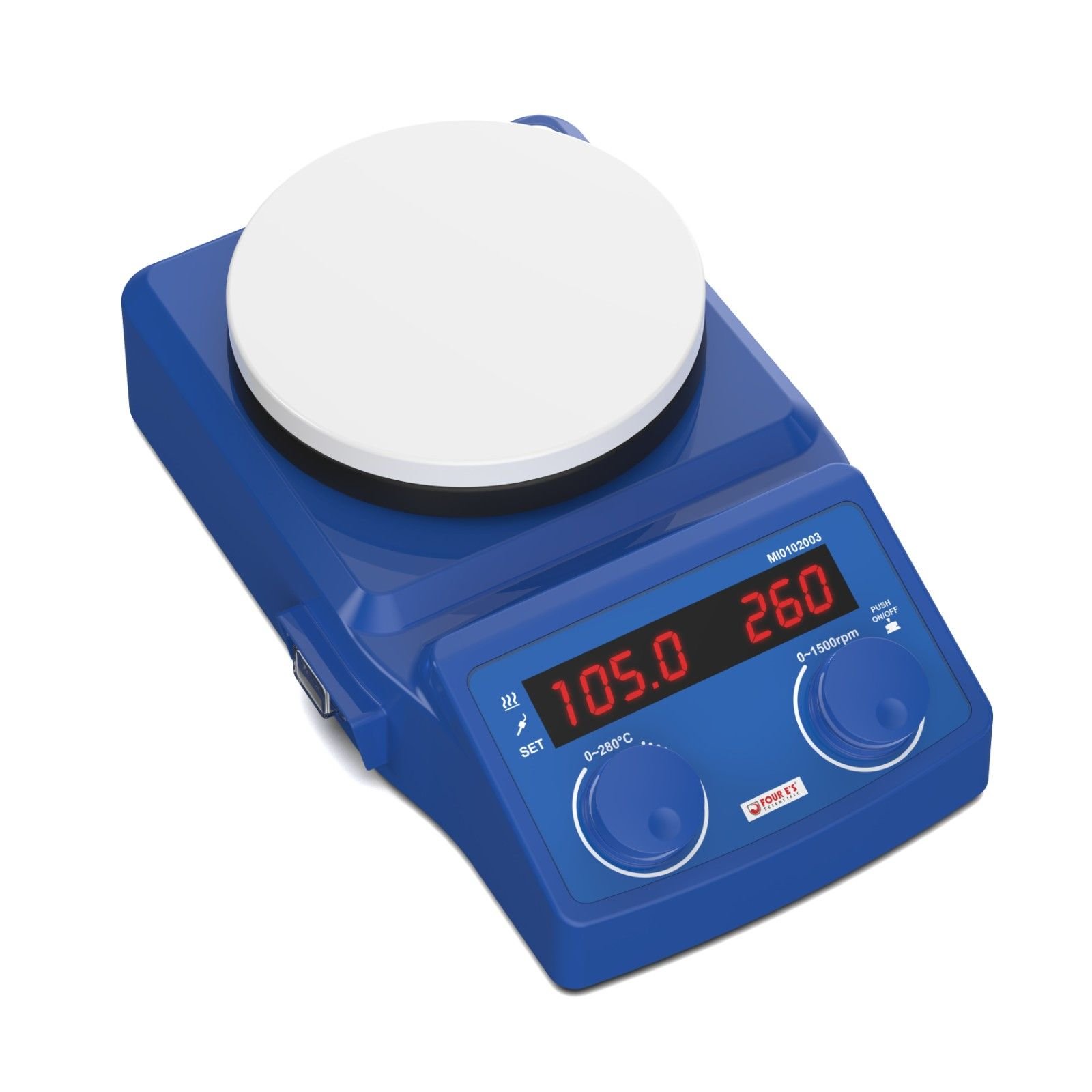

Four E’s Scientific MI0102003 Economy Magnetic Hotplate Stirrer
The Four E’s Scientific MI0102003 is an entry-level magnetic hotplate stirrer designed for laboratories that need reliable combined heating and stirring without the higher temperature range or stirring capacity of the standard range. Heating up to 280°C across a 5L capacity, the MI0102003 provides the same core LED display and PID temperature control found on higher-specification models, at a more accessible price point.
An optional external PT1000 sensor can be added for laboratories that later need more precise temperature control, giving a practical upgrade path without needing to purchase a different unit.
Key Features

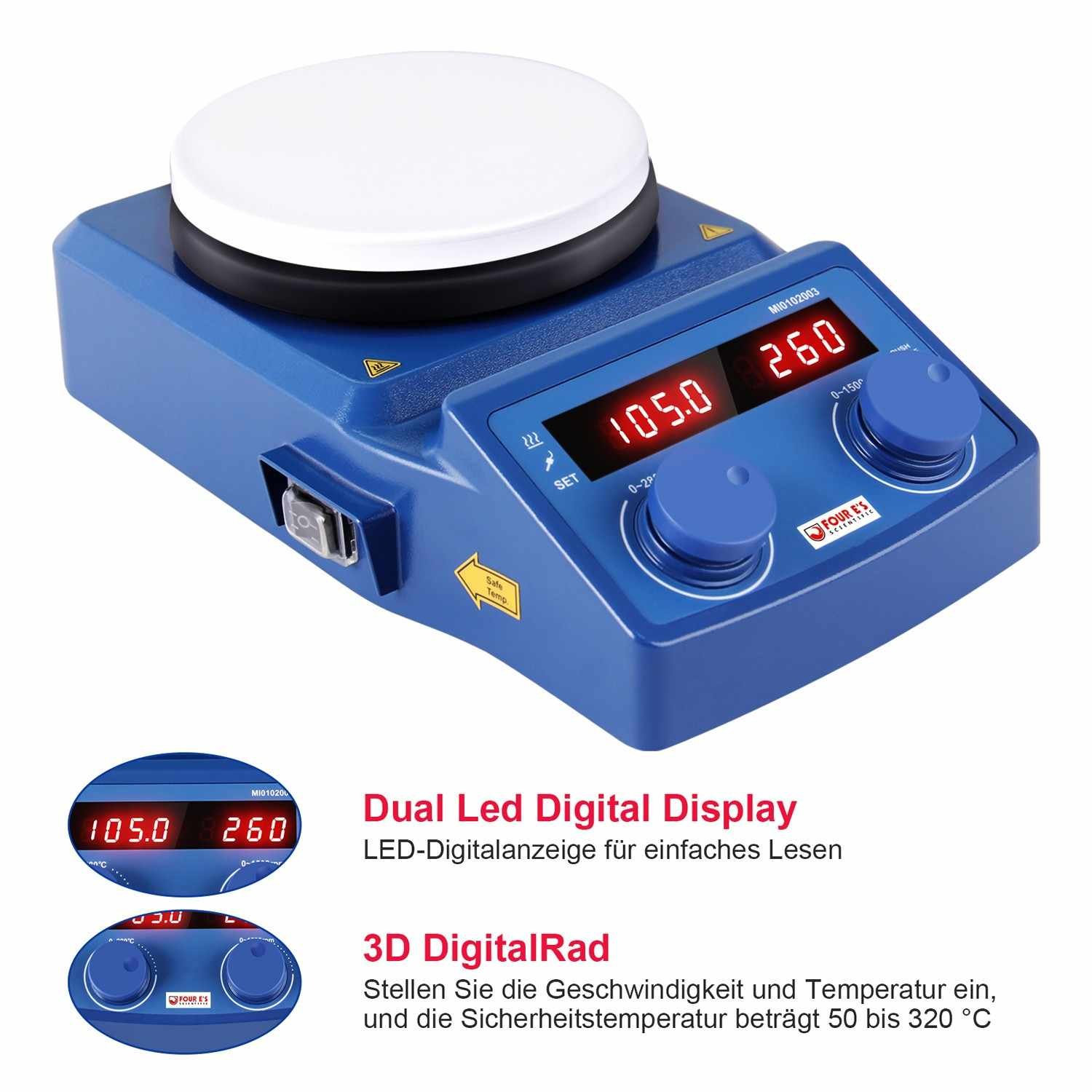

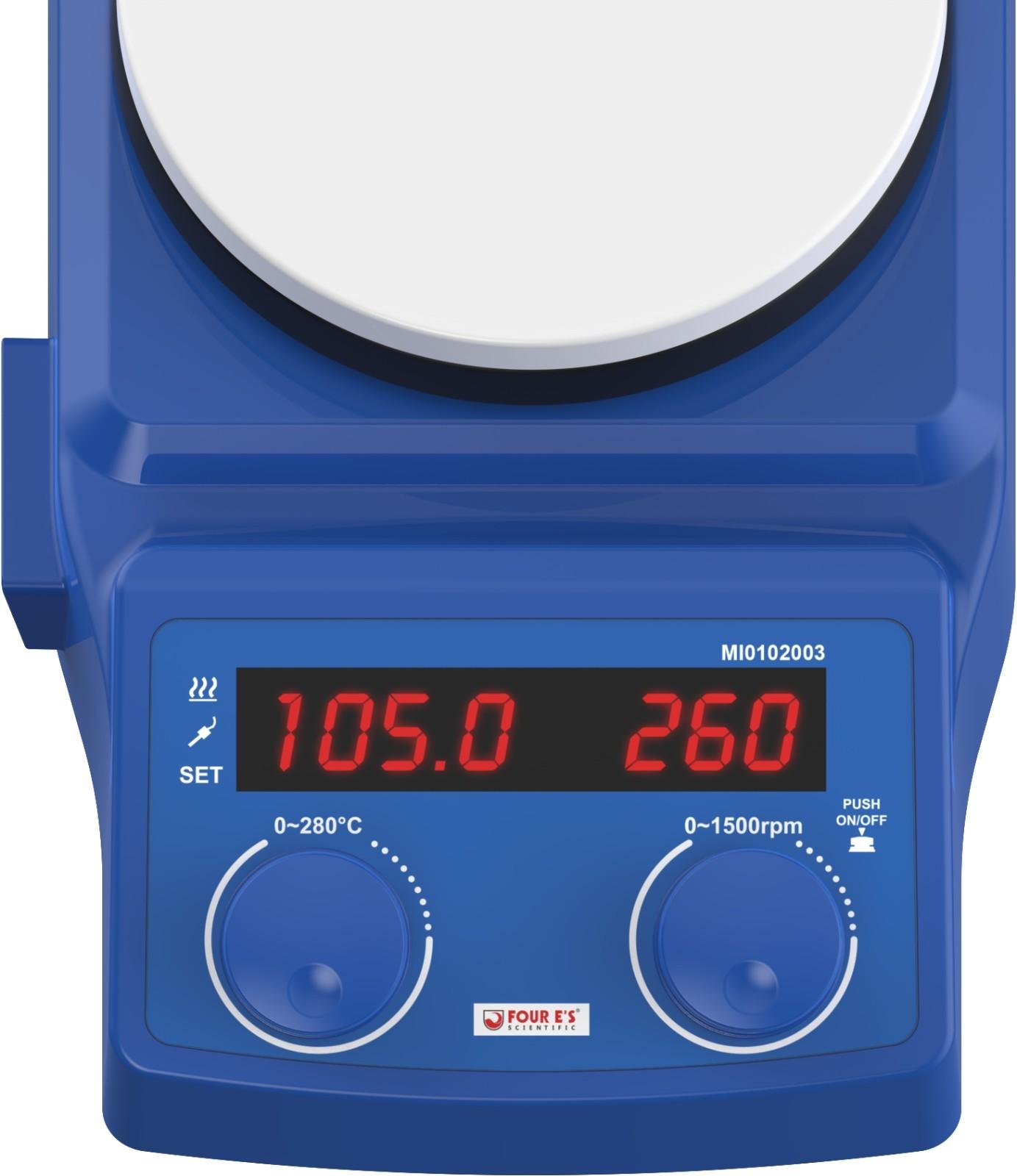

LED Digital Display
Clear LED display of speed and temperature settings supports precise, repeatable setup for routine laboratory use.
Heating Up to 280°C
A heating range from room temperature to 280°C, with a safety cutoff of 50–320°C, suits standard laboratory heating and stirring requirements.
Optional External PT1000 Sensor
An external PT1000 temperature sensor is available as an optional accessory, providing ±1°C temperature control accuracy for applications that need more precise regulation.

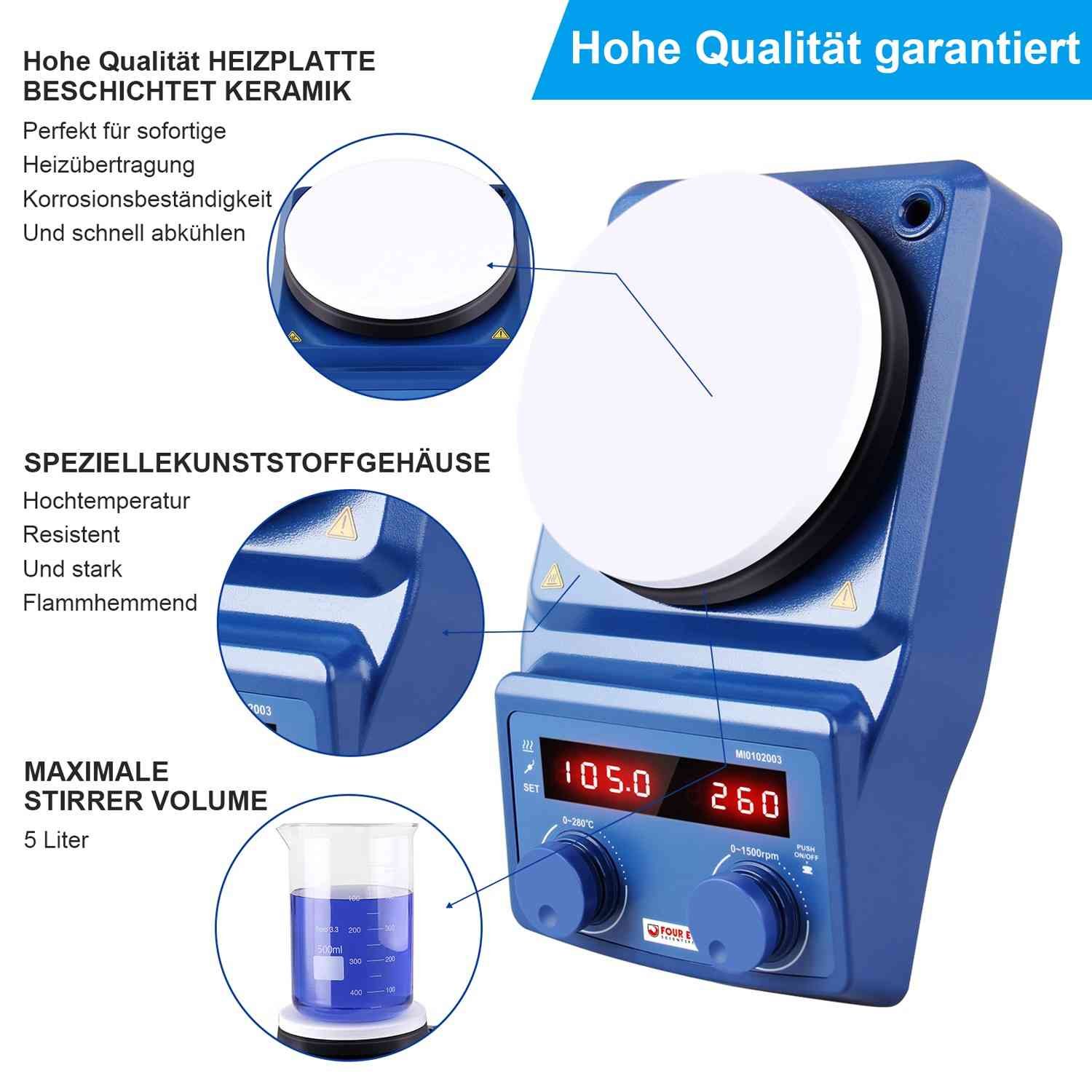

Enclosed Heating Plate Design
The enclosed plate design reduces the risk of liquid splashing into the equipment during use.
Maintenance-Free, Explosion-Proof Motor
A maintenance-free, explosion-proof DC motor drives stirring across a 5L capacity with a 55×10mm stirring bar.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MI0102003 |
| Part Number | MI0102003 |
| Stirring position | 1 |
| Set-up plate dimensions | Ø137mm |
| Set-up plate material | Stainless steel with ceramic coating |
| Motor type | DC motor |
| Max. stirring quantity (H₂O) | 5L |
| Max. stirring bar | 55×10mm |
| Motor rating output | 1.4W |
| Speed range | 100–1500RPM |
| Speed display | LED |
| Heating output | 600W |
| Heating temperature range | Room temp.–280°C |
| Temperature display | LED (resolution 0.1) |
| Safety temperature | 50–320°C |
| External temperature sensor | Optional |
| Temperature control accuracy (external sensor) | ±1°C |
| Hot surface warning | 50°C |
| Permissible ambient temperature | 5–40°C |
| Permissible relative humidity | 80% |
| Protection class (DIN EN 60529) | IP42 |
| Voltage | 100–120/200–240VAC |
| Frequency | 50/60Hz |
| Power | 630W |
| Dimensions (W×D×H) | 268×160×85mm |
| Weight | 1.8kg |

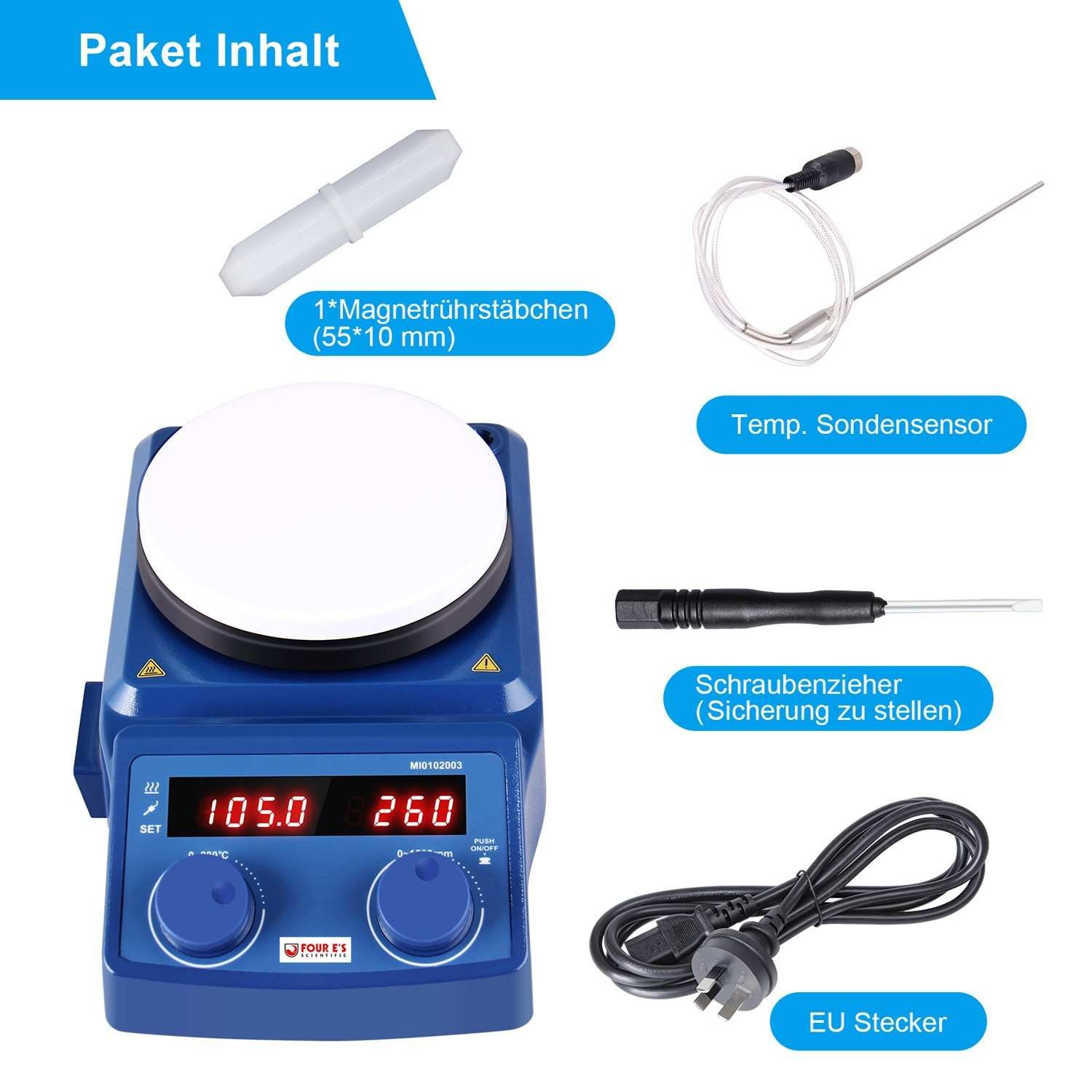

Optional Accessories
A PT1000 external temperature sensor and a stand with support clamp are available as optional accessories.
Applications
The MI0102003 Economy Magnetic Hotplate Stirrer is suited to a range of laboratory applications including:
- Routine heated buffer and reagent preparation — combined heating and stirring up to 280°C
- Teaching and training laboratories — reliable core performance at a lower price point
- Smaller-batch sample preparation — 5L stirring capacity suits modest volumes
- Budget-conscious equipment procurement — an accessible entry point into the hotplate stirrer range
MI0102003 vs MI0102010 — Economy or Standard?
The MI0102003 offers a lower 5L stirring capacity and 280°C maximum temperature compared with the MI0102010 Analog Magnetic Hotplate Stirrer (20L, 310°C), at a correspondingly lower price point. For laboratories that need the higher capacity and temperature range, the MI0102010 or MI0102002 Digital Magnetic Hotplate Stirrer are better suited.
Availability in Ireland
The Four E’s Scientific MI0102003 Economy Magnetic Hotplate Stirrer is available from Varen Scientific — Ireland’s authorised distributor for Four E’s Scientific laboratory instruments. We provide local procurement support, clear lead-time communication, and documentation assistance for Irish pharmaceutical, research, and academic laboratories.
For further background on why consistent mixing and reagent homogeneity matter for reproducible laboratory results, refer to research published via the National Center for Biotechnology Information (NCBI).
To request a quote or discuss which magnetic hotplate stirrer model is most appropriate for your laboratory application, contact our team directly or use the Request a Quote button above.
