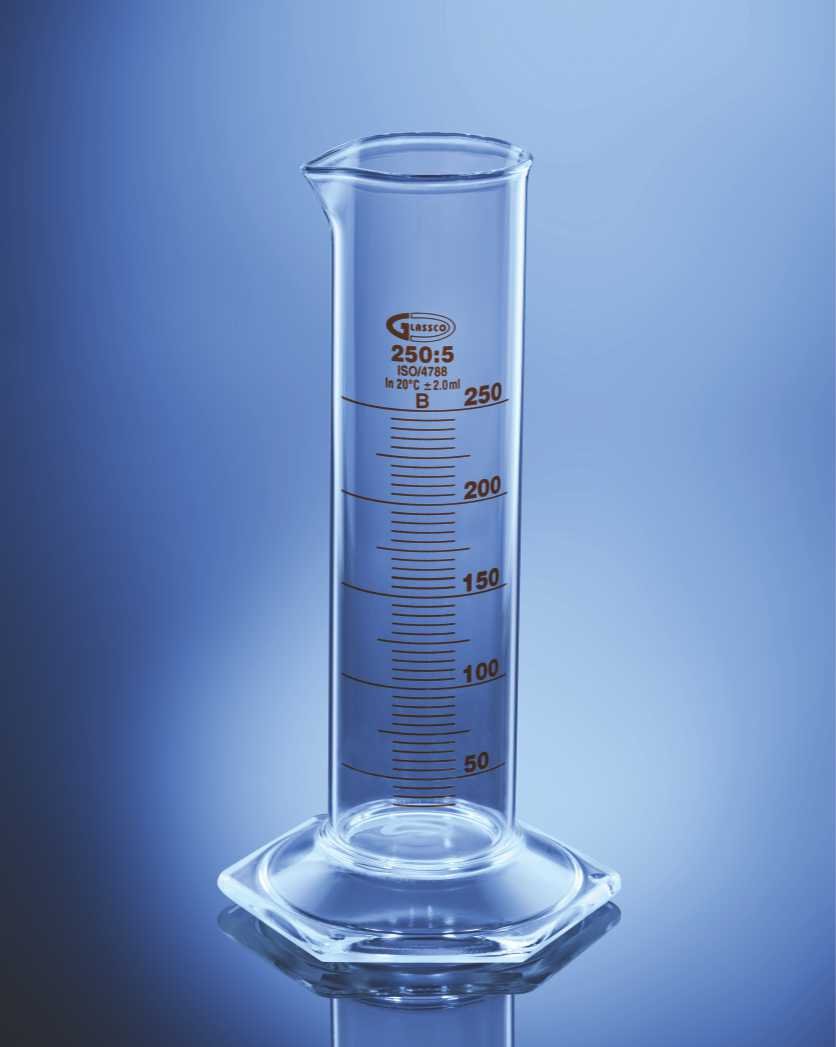

Glassco Class B Measuring Cylinder Low Form with Hexagonal Base
The Glassco low form Class B measuring cylinder with hexagonal base is a reliable and cost-effective borosilicate 3.3 glass measuring cylinder manufactured in compliance with DIN EN ISO 4788. Designed for general laboratory volume measurement in pharmaceutical, research, academic, and analytical laboratory environments, these cylinders provide a practical solution for routine liquid measurement tasks where the highest Class A accuracy tolerance and individual certification are not required.
Available in capacities from 5mL to 1000mL with durable amber graduation markings and a stable hexagonal base, these low form cylinders are a standard choice for everyday laboratory bench use. Supplied from Glassco’s European warehouse in the Netherlands, they are available for fast and reliable delivery across Ireland.
Key Features
Class B Compliance — DIN EN ISO 4788
Manufactured in compliance with DIN EN ISO 4788, these Class B measuring cylinders meet the internationally recognised standard for graduated measuring cylinders. Class B tolerance grades are appropriate for general laboratory use where routine volumetric measurement accuracy is required without the need for the tighter tolerances and individual certification of Class A cylinders.
Low Form Design
The low form profile provides a lower centre of gravity compared to tall form cylinders, offering enhanced stability on laboratory bench surfaces — particularly useful in busy or space-constrained laboratory environments where cylinder stability during measurement is important.
Stable Hexagonal Base
The hexagonal base design provides additional stability on flat bench surfaces, reducing the risk of tipping during handling, filling, and measurement — an important practical safety consideration in high-throughput or busy laboratory environments.
Borosilicate 3.3 Glass
Manufactured from borosilicate 3.3 glass, these measuring cylinders provide excellent resistance to the majority of chemicals encountered in routine laboratory use, including most acids, bases, and organic solvents. Borosilicate 3.3 also provides good thermal stability for use across the temperature range typically encountered in laboratory measurement workflows.
Durable Amber Graduation Markings
Graduation markings are printed in durable amber colour, providing strong visual contrast against the clear borosilicate glass for reliable meniscus reading under standard laboratory lighting conditions. The amber printing is applied to resist the normal handling and cleaning conditions encountered in routine laboratory use.
Single Metric Scale — To Contain (TC)
These cylinders feature a single metric graduation scale calibrated To Contain (TC), providing straightforward volume measurement for routine liquid handling tasks. The single metric scale simplifies reading and reduces the risk of scale misidentification compared to dual-scale configurations.
EU Warehouse — Fast Delivery to Ireland
Supplied from Glassco’s European distribution warehouse in the Netherlands, these cylinders are available for fast and reliable delivery across Ireland — significantly shorter lead times than direct import from outside the EU, with no customs complexity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Glassco |
| Type | Measuring Cylinder Low Form with Hexagonal Base |
| Accuracy Class | Class B |
| Glass Type | Borosilicate 3.3 |
| Standard Compliance | DIN EN ISO 4788 |
| Certificate | None (Class B — batch compliant) |
| Form | Low form |
| Base Type | Hexagonal base |
| Graduation Colour | Amber |
| Scale Type | Single metric, To Contain (TC) |
| Pack Size | 2 per pack (except 1000mL — 1 per pack) |
| Available Capacities | 5mL, 10mL, 25mL, 50mL, 100mL, 250mL, 500mL, 1000mL |
| Supply Origin | Glassco European Warehouse, Netherlands |
Graduation and Tolerance Reference
| Capacity (mL) | Subdivision (mL) | Tolerance ± (mL) | Pack of | Item Code |
|---|---|---|---|---|
| 5 | 1.0 | 0.15 | 2 | 138.429.00A* |
| 10 | 1.0 | 0.30 | 2 | 138.429.01A |
| 25 | 1.0 | 0.50 | 2 | 138.429.02A |
| 50 | 2.0 | 1.00 | 2 | 138.429.03A |
| 100 | 2.0 | 1.00 | 2 | 138.429.04A |
| 250 | 5.0 | 2.00 | 2 | 138.429.05A |
| 500 | 10.0 | 5.00 | 2 | 138.429.06A |
| 1000 | 20.0 | 10.00 | 1 | 138.429.07A |
* 5mL size is Non-DIN.
Applications
Glassco Class B low form measuring cylinders are suited to a broad range of routine laboratory volume measurement applications:
- General reagent and buffer preparation — routine volume measurement for the preparation of solutions and reagents in daily laboratory workflows
- Research and academic laboratories — reliable volume measurement for general laboratory procedures where Class A certification is not required
- Sample preparation — measuring liquid volumes during sample handling, dilution, and preparation procedures
- Teaching and training laboratories — durable and economical measuring cylinders for educational laboratory environments
- General analytical chemistry — routine volumetric measurement across a wide range of analytical and preparative chemistry applications
Class A vs Class B — Which Measuring Cylinder Do You Need?
Class B measuring cylinders are appropriate for general laboratory use where routine volumetric measurement accuracy is required without the need for individual certification or the tighter accuracy tolerances of Class A. For regulated laboratory environments — pharmaceutical QC, GLP-compliant facilities, and accredited testing laboratories — where individual work certificates and the highest accuracy tolerances are required, the Class A Measuring Cylinder with Hexagonal Base is the appropriate choice.
Availability in Ireland
Glassco Class B low form measuring cylinders with hexagonal base are available from Varen Scientific — Ireland’s authorised distributor for Glassco laboratory glassware. Supplied from Glassco’s European warehouse in the Netherlands, these cylinders are available for fast and reliable delivery across Ireland with shorter lead times than direct import from outside the EU.
For further technical information on measuring cylinder standards and selection guidance, refer to information published by ISO (International Organisation for Standardisation) on laboratory glassware specifications.
To request a quote or discuss your measuring cylinder requirements, contact our team directly or use the Request a Quote button above.
